Spray Dryer Spray Dryer,Special Spray Dryer,Garlic Spray Dryer,Protein Spray Dryer Changzhou Su Li drying equipment Co., Ltd. , http://www.sldrying.com

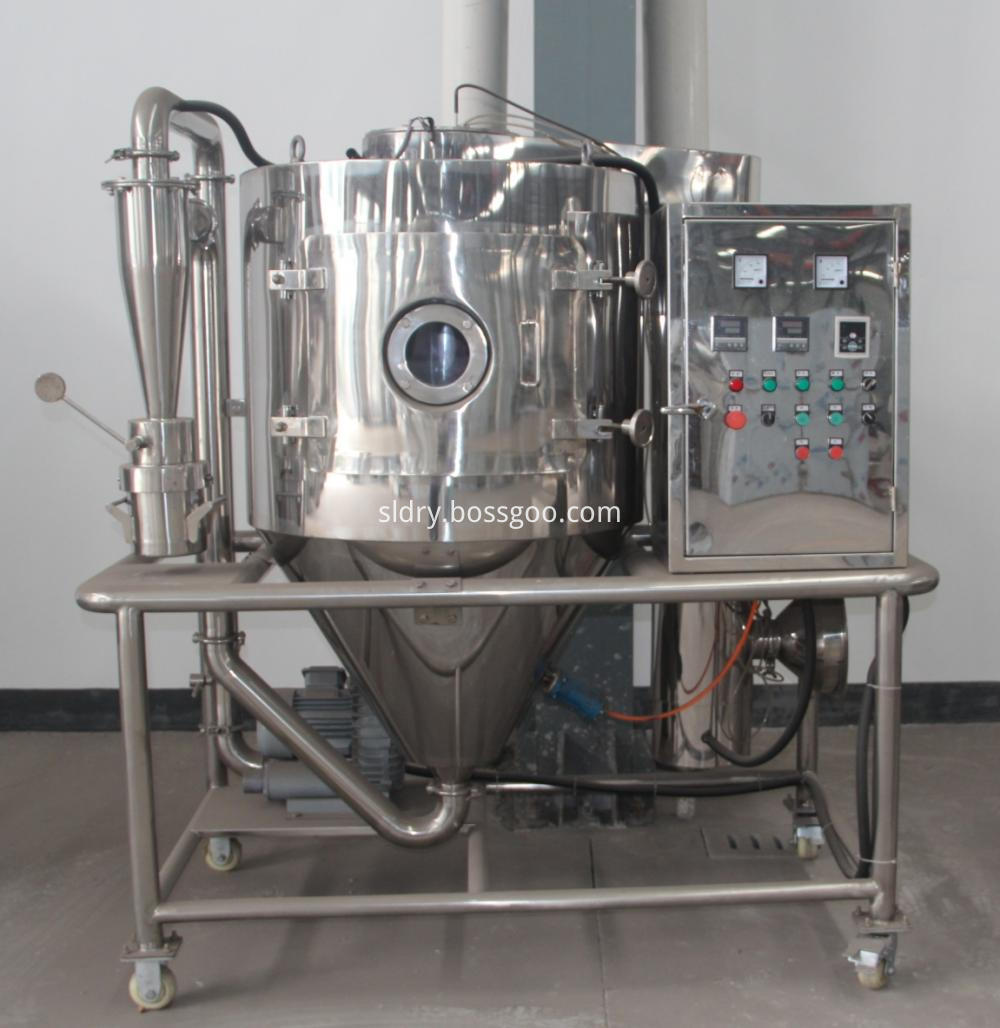

ZPG Spray Drier utilizes high-speed centrifugal atomizer to disperse the materials into tiny droplets, and fully contact with the hot air in order to complete constant dry and obtain the powder products. This centrifugal spray drying equipment is suitable for drying Chinese medicines and plant extracts with low melting point and high sugar content. It can prevent the materials from coking, caking or sticking to the wall. Our Spray Dryer meets the GMP standards.
1. This centrifugal spray dryer equipment has rapid drying speed, generally only needs a few seconds. It is characterized by instant drying.
2. The temperature of liquid drops is relatively low in drying process, so our spray dryer is especially suitable for drying thermosensitive materials.
3. The tower body and cyclone adopt automatic vibrating device, so as to prevent the accumulation of the material in the tower.
4. This Herbal Extract Spray Drier is equipped with interlayer cooling structure, which can effectively prevent the materials from sticking to the walls and coking phenomenon. The product quality and yield can be improved.
5. The special pneumatic conveying system can timely separate the finished products from the hot moist are in the system, so as to avoid moisture absorption or agglomeration of the finished products.
Model
ZPG-5
ZPG-10
ZPG-25
ZPG-50
ZPG-80
ZPG-100
ZPG-150
ZPG-200
ZPG-300
Water Evaporation (kg/h)
5
10
25
50
80
100
150
200
300
Handling Capacity (kg/h)
6 to 7
12 to14
25 to 34
50 to 68
80 to 108
100 to 135
150 to 203
200 to 270
300 to 406
Solid Content of Wet Material (%)
18 to 25
Finished Product Quantity (kg/h)
1 to 2
2 to 4
4.8 to 7.2
9.2 to 14
14.8 to 22.4
18.4 to 28
24 to 42
36.8 to 56.4
55 to 85
Moisture Content of Finished Product (%)
3 to 5
Electric Power (kw)
36
45
63
99
132
153
204
246
330
Heating Source
Steam + electricity
Product Recovery Method and Efficiency
Two-stage cyclone dust collector or one-stage cyclone dust collector and wet dust collector 95%
Automatic Instrument
Exhaust temperature indicator, self-adjusting controller
Inlet Air Temperature (ºC)
150 to 200
Outlet Air Temperature (ºC)
80 to 100
Dimensions (mm)
L
500
5500
7000
8000
9800
11000
12200
14000
15000
W
300
3500
4000
5000
5700
6200
7000
7800
9000
H
4500
4600
5000
6500
7600
8100
9000
9850
11100
