• Tile Type: Colored Steel
  • Customized: Customized
  • Transmission Method: Electric
  • Condition: New
  • Usage: Roof
  • HS Code: 8455229090
914-610 240 Trussless K Shape Roof Arch Style Building Roll Forming Machine


 Introduction



Arch building machine consists of two parts, one is forming part, another is arching part. These two parts are sit on a mobile frame moving from here and there. Someone even call it mobile factory. We are the professional manufacture with 20 more years since the beginnings in China. Not only sell equipments but also offer engineering service.



Machine Components



a) De-coiler b) Roll-forming device
c) Hydraulic cutter d) PLC control system
e) Curving device  f) Necessary accessories





Technical description


Suitable material: galvanized steel, colored steel, etc

Total weight:11tons

Coil thickness: 0.6 -1.5mm

Roller stands:16

Main Power:5.5kw

Secondly power 4.0kw

Side power 1.5kw*2

Hydraulic cutting power:4.0kw

Roller material: 40Cr,quenched by HRC58-62

Shaft material: No.45 steel

Cutting Blade material:Cr12 Mov.



Power supply: AC380V±10%, 50Hz, or as per your requirement

Main machine dimension: 8.9m × 2.m × 2.2m




914-610 240 Trussless K Shape Roof Arch Style Building Roll Forming Machine

914-610 240 Trussless K Shape Roof Arch Style Building Roll Forming Machine



Model list





Type Width of the coil Width of the formed sheet Thickness of the coil Max span Use ratio The depth of the groove
LS-1250-800 1250mm 800mm 1.0-1.5 mm ≤45m 64% 320mm
LS-1000-800 1000mm 800mm 0.8-1.5 mm ≤25m 80% 114mm
LS-1000-750 1000mm 750mm 0.8-1.5 mm ≤28m 75% 138mm
LS-1000-700 1000mm 700mm 0.8-1.5 mm ≤25m 70% 175mm
LS-1000-680 1000mm 680mm 0.8-1.5 mm ≤36m 68% 223mm
LS-1000-610 1000mm 610mm 0.8-1.5 mm ≤45m 61% 243mm
LS-1000-550 1000mm 550mm 0.8-1.5 mm ≤45m 55% 187.5mm
LS-1000-400 1000mm 400mm 0.8-1.5 mm ≤45m 40% 253mm
LS-914-750 914mm 750mm 0.8-1.5 mm ≤20m 82% 86mm
LS-914-700 914mm 700mm 0.8-1.5 mm ≤25m 76% 123mm
LS-914-650 914mm 650mm 0.8-1.5 mm ≤28m 71% 181mm
LS-914-610 914mm 610mm 0.8-1.5 mm ≤40m 66% 203mm
LS-914-400 914mm 400mm 0.8-1.5 mm ≤45m 43% 210mm
LS-600-305 600mm 305mm 0.8-1.5 mm ≤30m 51% 109mm


Performance

914-610 240 Trussless K Shape Roof Arch Style Building Roll Forming Machine
914-610 240 Trussless K Shape Roof Arch Style Building Roll Forming Machine

914-610 240 Trussless K Shape Roof Arch Style Building Roll Forming Machine


914-610 240 Trussless K Shape Roof Arch Style Building Roll Forming Machine


Contact me:

Maxine

mobile number:0086-15941796785

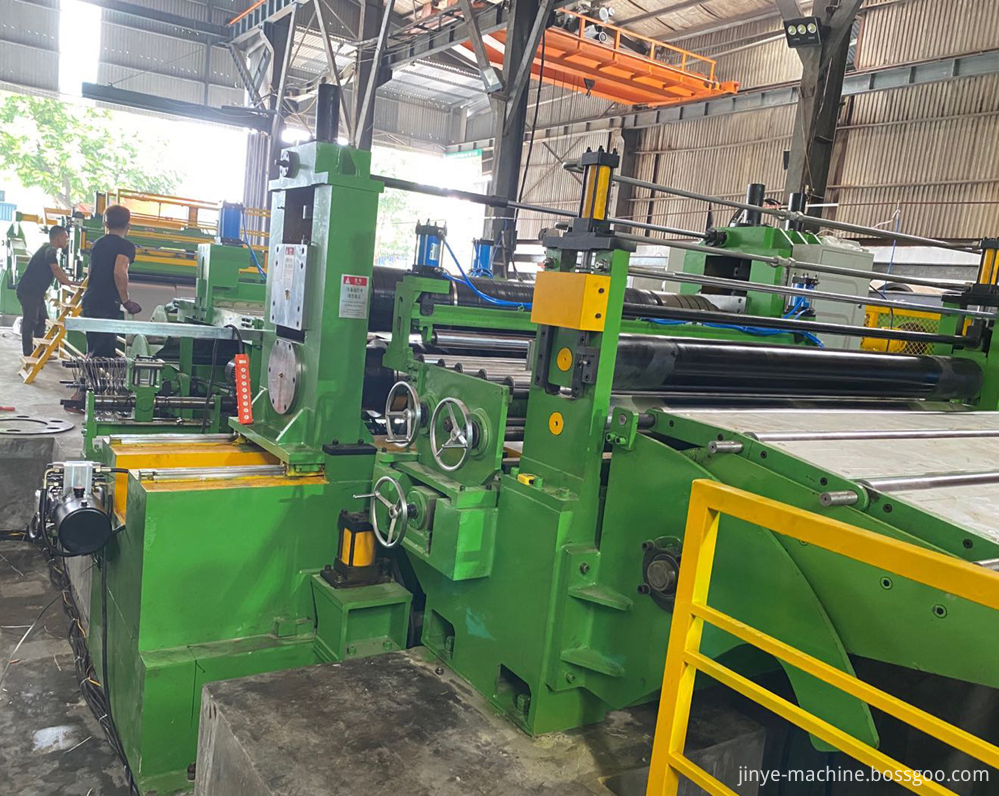

High Speed Slitting Line

High Speed Slitting Line focus on thin gauge metal strip slitting, must be high speed Precision Slitting Line.

Our High speed Slitting Line can be 120m/min, 150m/min, 180mpm, slitting precision is embodied in slit widths tolerance, edge burr, strip longitudinal straightnes, rewinding orde, etc.

We supply the high speed precision slitting lines to Algeria, Vietnam, Philippines, Russia, Malaysia, etc countries, the customers are ERW pipe plants, PEB profiles suppliers, home appliances company, metal processing center.
